Harbor Costa Mesa Concrete builds parkway walks to the City's standard and the walks a fourplex runs to its doors, on a base packed and held at the edge. Every estimate is measured and written on site.
5.0 Stars Rated by our customers · Google, Facebook and the BBB
How a walk is built here
A sidewalk is the thinnest, narrowest slab on the property, and it fails at its edges before it fails anywhere else. Four feet wide and 4 inches deep, it has no mass to hold itself down and no width to bridge a hollow, so whatever happens to the strip of ground beside it happens to the walk within a year or two. On the sand this city sits on, what happens to that strip is water. It carries the sand out from under the edge, the panel tips into the gap, and the corner snaps off.
Harbor Costa Mesa Concrete was started in 2019 by Julian Mercado after 15 years on crews across coastal Orange County, and he shoots the grade on every walk himself, because a walk that does not fall toward the gutter holds water against its own base. The frontages here were poured with the tracts in the 1950s and 1960s, with a parkway lawn between walk and curb and a sprinkler head at each corner, and 60 years of that water is why whole blocks dip toward the street.
Walks are built under a CSLB C-8 license, with liability insurance on every job. The parkway walk between your lot line and the curb belongs to the City of Costa Mesa, is poured to its standard and takes an encroachment permit we file and an inspection we attend. A walk inside the lot line, from the drive to a door or along a row of units, is yours and needs no permit. Either way the walk carries a written workmanship guarantee against defects in how it was built.
Repair or replace
Panels that no longer meet flush, one edge standing half an inch above its neighbor, are panels whose base has gone from under one end. Grinding the lip off buys a year, then the panel keeps tipping and the lip comes back. Three lips on a frontage mean the base is gone along it.
Walk the panel and tap it with a heel. A dull thud is concrete on ground, and a ring is concrete over a void, which on sand was made by water running under the edge from a sprinkler head. The panel is a bridge now, and it breaks the first time a delivery truck's wheel finds it.
Where the drive crosses the walk, cars have turned in over a 4-inch panel poured for feet for 60 years, and it is broken into plates that rock. It is the City's walk as well as your approach, and the two go together, with the crossing thickened for the wheels that will keep using it.
A parkway tree planted with the tract has roots the size of a forearm under the walk by now, and the panel beside it stands at an angle no grinder can take out. A raised panel by a tree is the one a passerby trips on, and it is replaced over a root barrier rather than set back down.
In every walk
Eight things go into every walk at no separate line, and each answers the way a walk fails on this ground. The sand has to be packed and kept in place, the water has to be sent to the gutter, and the panel where the cars cross has to be poured for cars.
Every failed panel is sawn at the joint, broken out and hauled the same day, down to the sand, and the sound panels either side are left alone.
Where the old panel rang hollow the sand is dug back to firm ground and the hollow filled with base, packed in layers, before anything is formed.
4 inches of crushed base plate-compacted, and the bed formed wider than the walk on each side so the sand cannot run out from beneath it.
The walk is set with a cross fall toward the curb, so a sprinkler or a storm sends its water over the edge into the street, not under the panel.
The panel at the driveway is poured 6 inches deep, so the wheels turning in over it every day meet a slab built for wheels, not for feet.
Score lines and expansion joints match the panels either side, so the new walk reads as one run, not a patch, and every crack lands in a line.

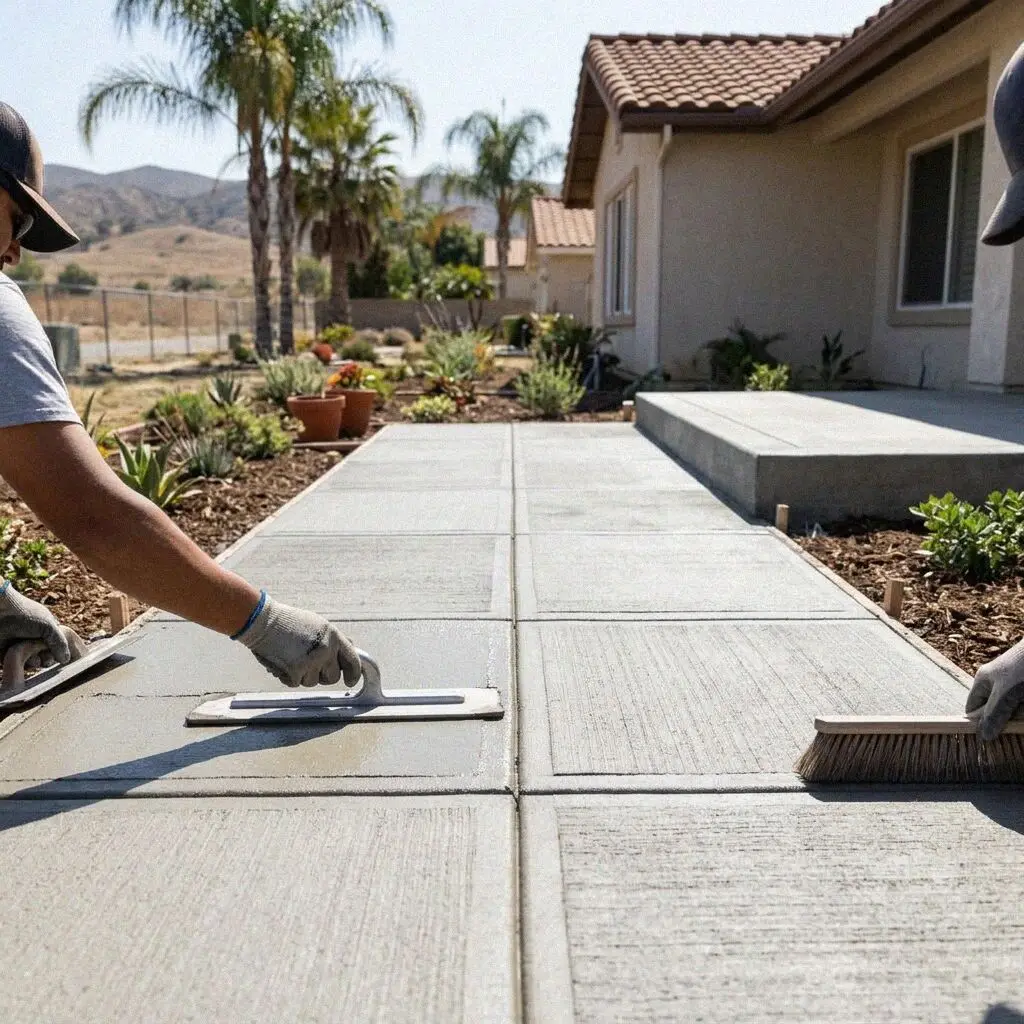

A broom finish run across the direction of travel, with tooled edges, which is the finish the City asks for and the one that grips when wet.
We walk the frontage with you against the estimate, base, depth, fall and joints, and the written guarantee is handed over before we leave.
How it can be built
Four ways to put a walk right on a frontage here, set against what is failing, how deep it is poured, whose permit it takes and when it can be walked on. What sits under the panel is the same in all four, so the table is about the slab and where it stands.
| Option | Fixes | Poured at | Permit | Back in use |
|---|---|---|---|---|
| Single panel replaced | One lip or one hollow panel | 4 inches, matched to its neighbors | City encroachment permit | 48 hours on foot |
| Full frontage on new base | Three or more panels dipping together | 4 inches on 4 inches of base | City encroachment permit | 48 hours on foot |
| Driveway crossing panel | The plates cars rock at the drive | 6 inches, poured with the apron | City encroachment permit | 7 days for a car |
| Private walk to the doors | The path from the drive to the units | 4 inches, jointed every 4 feet | None inside the lot line | 48 hours on foot |
A single panel costs least and a full frontage on new base costs most, with the crossing and the private walk between them, and cost runs in that order only.
Sand and water
The ground here does not lift a walk, because there is nothing in it to swell. What breaks one is water carrying sand out from under the edge, and wheels crossing a panel that was poured for feet.
Inland, a broken walk is usually clay moving with the seasons. Here the terrace sand holds its volume all year, and a panel poured on packed sand in 1958 would still be flat if the ground beside it had stayed dry. It did not. Every parkway lawn on the Eastside, in Mesa Verde and in College Park has had a sprinkler head at each panel corner for six decades, and fine sand moves under running water as clay does not. It leaves from under the edge a little at a time.
The second thing is traffic on a walk poured for feet. In a city where most homes are rented, the frontages of the duplexes and fourplexes on the Westside and off Harbor Boulevard carry more than a homeowner's walk does, a moving truck every year, a delivery cart most days, and cars turning over the crossing panel to a row of garages. A 4-inch panel was never built for that, so the crossing here is poured at 6 inches, and the approach is built with it so the two do not meet at a step.
From call to cure
Five stages, one crew, and the person who walks the frontage with a heel and a level is the one standing on it at the pour. Any panel in the parkway is permitted with the City before a saw starts.
Julian Mercado walks the frontage, taps every panel for a void, shoots the fall to the gutter and writes the figure at the curb before he leaves.
You decide whether it is the failed panels or the whole frontage, take a date, and the City's permit is filed for anything in the parkway.
Failed panels are sawn at the joint and hauled, hollows are dug to firm sand and filled with packed base, and the parkway lawn is cut back clean.

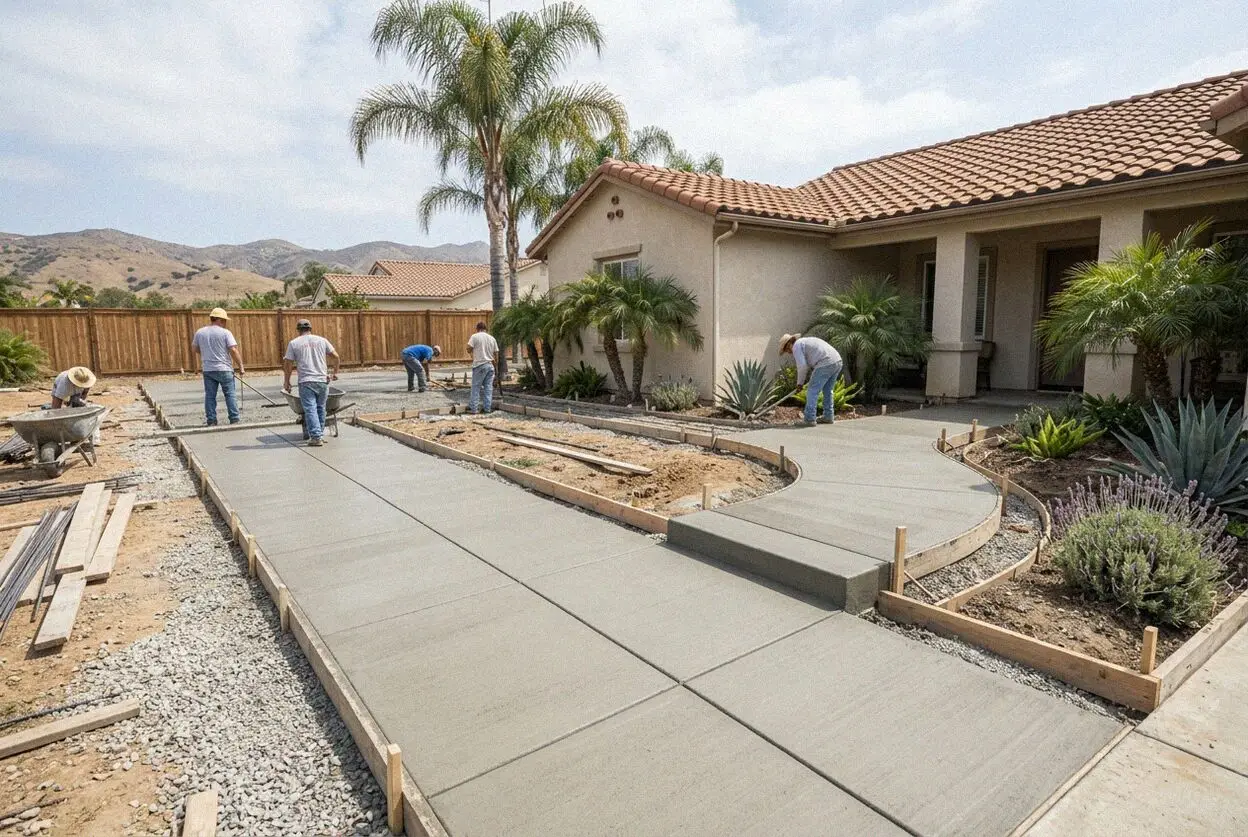

Base compacted and formed wide, the walk set to its cross fall, poured and broomed across the travel, with the crossing panel at 6 inches.
Joints scored to match, panels kept damp for a week, the inspector met for the City's sign-off, and the paperwork handed over on the walk-through.
Behind the number
The count of panels starts the figure and what is under them finishes it. Two frontages the same length can be a day apart once the hollow panels are found, so nothing is quoted from a photograph. Every estimate is measured and written on site.
A 60-foot frontage on a 1950s ranch house is about fifteen panels of parkway walk, and the figure is how many have tipped, not how many there are.
The private walks between a row of units and their garages are measured per unit at a landlord's request, and the crossing panel is shared.
A corner carries two frontages, and a walk past 100 feet crosses more sprinkler lines and more hollows, so it is tapped panel by panel.
A private walk can take exposed aggregate or an integral color where a parkway walk cannot, and each is a pass over the slab on its own line.
The visit and the written figure cost nothing, and the call that books it comes within 1 business day. A landlord with a row of units gets a line per frontage. (949) 541-4812 or send us a message.
Send the form or call, and someone rings back within 1 business day to fix a time. Julian Mercado walks the frontage, taps each panel and writes the figure at the curb, and you can hold it as long as you like.
Walks we rebuilt
Three reviews left on Google, Facebook and the BBB, each about a walk rather than a drive or a patio, and each naming the panels that were replaced or what had broken them.
“Four panels along our State Streets frontage had tipped toward the curb and the sprinkler corner rang hollow. They dug the hollow out, packed it, poured the four panels on new base with a fall to the street, and the City inspector signed it off the same week. Still flat two winters on.”
“I own a fourplex off Harbor Boulevard and the walk to the units was cracked at every door, and the crossing at the drive was in six pieces. Julian poured the crossing at 6 inches with the approach and the walk to the doors in one run, jointed every 4 feet. The tenants stopped calling.”
“The parkway tree in front of our Mesa Verde house had lifted the panel beside it a good inch and a half. They filed the permit, took the panel out, set a root barrier along the tree side, and poured it back level with its neighbors. Eighteen months in and the joint is still flush.”
Before you book
What moves the figure on a walk, how long the frontage is closed, what the estimate covers, which panels the City permits, whose walk it is, and what is guaranteed, answered for a frontage here.
The number of panels that have to come out, and what is under them. A frontage with one lipped panel is a morning's work, and one where every panel rings hollow is a full replacement on new base, dug back to firm sand along its length. The crossing at the driveway adds depth, since it is poured at 6 inches, and a private walk that takes a finish adds a pass. Every panel is tapped before the figure is written.
Two to three days for a frontage, and about 48 hours after the pour before anyone walks on it. Panels are sawn and hauled on the first day, hollows filled and base packed on the second, and the pour and the broom take one morning. The crossing at the drive is kept clear of cars for seven days. The walk is closed with cones and a plank path laid across the parkway lawn so nobody has to step into the street.
Yes to both. The written figure covers sawing and breaking out the failed panels, hauling them, digging out any hollow and filling it with packed base, the forms, the concrete, the broom finish, the joints, and the City's encroachment permit and inspection for any panel in the parkway. What sits outside it is named at the visit, most often a root barrier by a parkway tree or a curb repair the inspector asks for.
For the parkway walk, yes, because it is public right-of-way, and the City of Costa Mesa issues an encroachment permit for it and inspects the finished panels to its standard. For a walk inside your lot line, from the drive to the door or between rental units, no, because the California Residential Code leaves flatwork on private ground alone. We say at the visit which panels are which and file for the City's.
Usually neither. Homeowners insurance treats a walk that has tipped over the years as wear, and a claim only arises for a sudden event, a vehicle across it or a water main burst under it, so photograph the walk and ask your carrier first. In California the upkeep of the walk in front of a lot falls on that lot's owner under the Streets and Highways Code, so the owner behind the City's walk usually pays.
How it was built. The base packed and held at the edge, the depth poured, the fall to the gutter, the joints scored to match and the finish left on it, with those terms on the estimate before you sign. The walk carries a written workmanship guarantee against defects in how it was built. A root lifting a panel, a sprinkler line broken by someone else, staining and wear sit outside it. A fault of ours is put right.
A 3,500 psi ready-mix placed the morning it is batched, 4 inches of Caltrans Class 2 aggregate base under it, and a broom finish across the direction of travel with tooled edges, which is the finish the City's standard calls for in the parkway. The crossing panel at the drive is poured 6 inches deep, and a private walk can take exposed aggregate or a color instead. The mix and the finish are named on the estimate.
Only for the measurement and the walk-through, and for a rental the landlord can do both without a tenant present. In between the crew needs the parkway sprinklers off for the week, a hose bib, and the cars kept off the crossing panel for seven days, which for a fourplex means telling the tenants where to park. If the walk is the only way to a door, it is poured in two halves so there is always a path in.
Frontages we rebuild
The eight nearest towns, with the straight-line distance from the office on Newport Boulevard beside each. Each city permits its own parkway, and every walk is tapped at the curb before a figure is written.
Four jobs that meet a sidewalk at one edge or another, poured by the same crew on the same packed base, and itemized on the one written estimate so the walk and what it runs into are built together.
The approach and the drive the crossing panel joins, poured together so the two meet flush.
The step or two from a walk up to a porch, poured with the walk so the risers land even.
A failed panel sawn out at the joint, clean, so the sound panels either side stay whole.
Exposed aggregate for a private walk, where the City's plain broom finish does not apply.
Call or send the form and you hear back within 1 business day. Say roughly how many panels have lipped or rock underfoot and whether the drive crosses the walk, and the visit can be booked for a day inside the same week.
